Optical Coherent ReceiverConverted to electrical signals by pairs of BPDS with integrated TIAs. Optical wavelength in C+L band and the operating temperature range is from -40℃ to 70℃. Electrical 3dB bandwidth is more than 6GHz. RF output is SMA or SMPM, which is convenient for system connectionMORE- Optical Mixertranslates the incident signal and LO signal into in-phase (0°and 180°) and quadrature (90° and 270°) phase channels. 0°and 180° optical signals are connected to the first balanced PD and 90° and 270° optical signals are connected to the second PD. Optical wavelength is from 1260nm to 1600nm and Wide Operating temperature range is from -40℃ to 70℃MORE

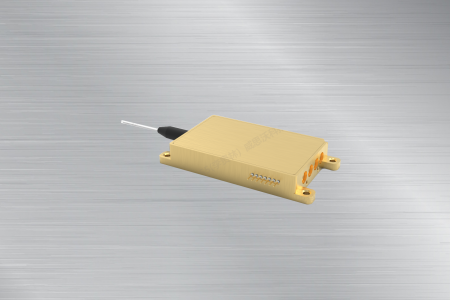

- TFLN IQ ModulatorBased on thin film lithium technology and the size of which is much smaller than that of traditional bulk material lithium niobate modulator. High bandwidth up to 40 GHz and low drive voltage to support 2Vpi drive requirement.Hermetically Sealed, works at C-band wavelength and has low chirp and skew between I and Q channels.MORE

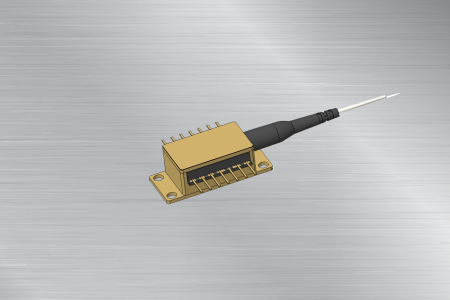

Narrow linewidth LaserOperating temperature range is from -40℃ to 70℃. Optical output power is more than 10mW and the optical linewidth is less than 2kHz. Optical wavelength no-hopping tuning range is up to ±50pm.MORE

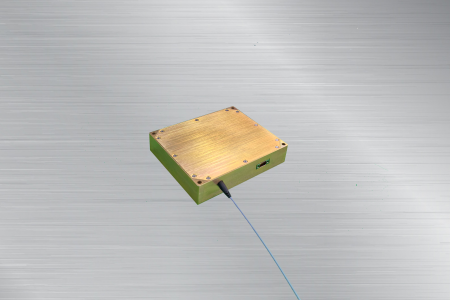

Narrow linewidth Laser MoudleMetal sealed shielding design (size 75mm x90mm x18mm),Laser linewidth ≤10K
Relative intensity noise ≤150 dBc/Hz@10kHz,Side mode suppression ratio ≥60 dB
Tuning range ±0.05 nm (with the center wavelength as the zero point),Tuning resolution ≥3 MHz
-40~70°C temperature operating range, no mode hopping in the full temperature range
Support online upgrade, parameter control, status monitoring functionsMORE

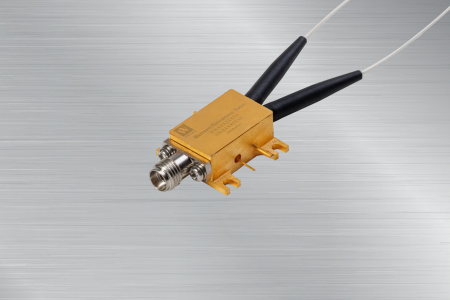

Broadband InGaAs Balanced PhotodetectorIt is capable of handling more than 10mW optical power, high common mode rejection ratio (CMRR) and low polarization dependent Loss (PDL). Different electrical bandwidth such as 6GHz, 12GHz, 15GHz and 18GHz can be selected. Normalized optical wavelength is from 1260nm to 1600nm, which can also be customized. Wide Operating temperature range is from -40℃ to 70℃.MORE
