W6300D

Description

This product is a single-channel current output linear optocoupler composed of an infrared light-emitting diode and two photosensitive transistors, packaged in DIP8 ceramic tube shell. The transfer coefficient is 1, and the operating temperature is -55℃～+100℃, meeting the application requirements of high reliability and environmental adaptability.

Application                                                                                                                   Features

Power supply feedback voltage and current                                                         Isolation voltage: >1000V
Medical sensor signal isolation                                                                                   Non-linearity: ≤1%
Automatic signal bonding                                                                                             Transfer coefficient: 1.0±0.1
Isolated process control sensor                                                                                  Static level: 1000V
Digital telephone isolation                                                                                           Operating temperature: -55℃~+100℃

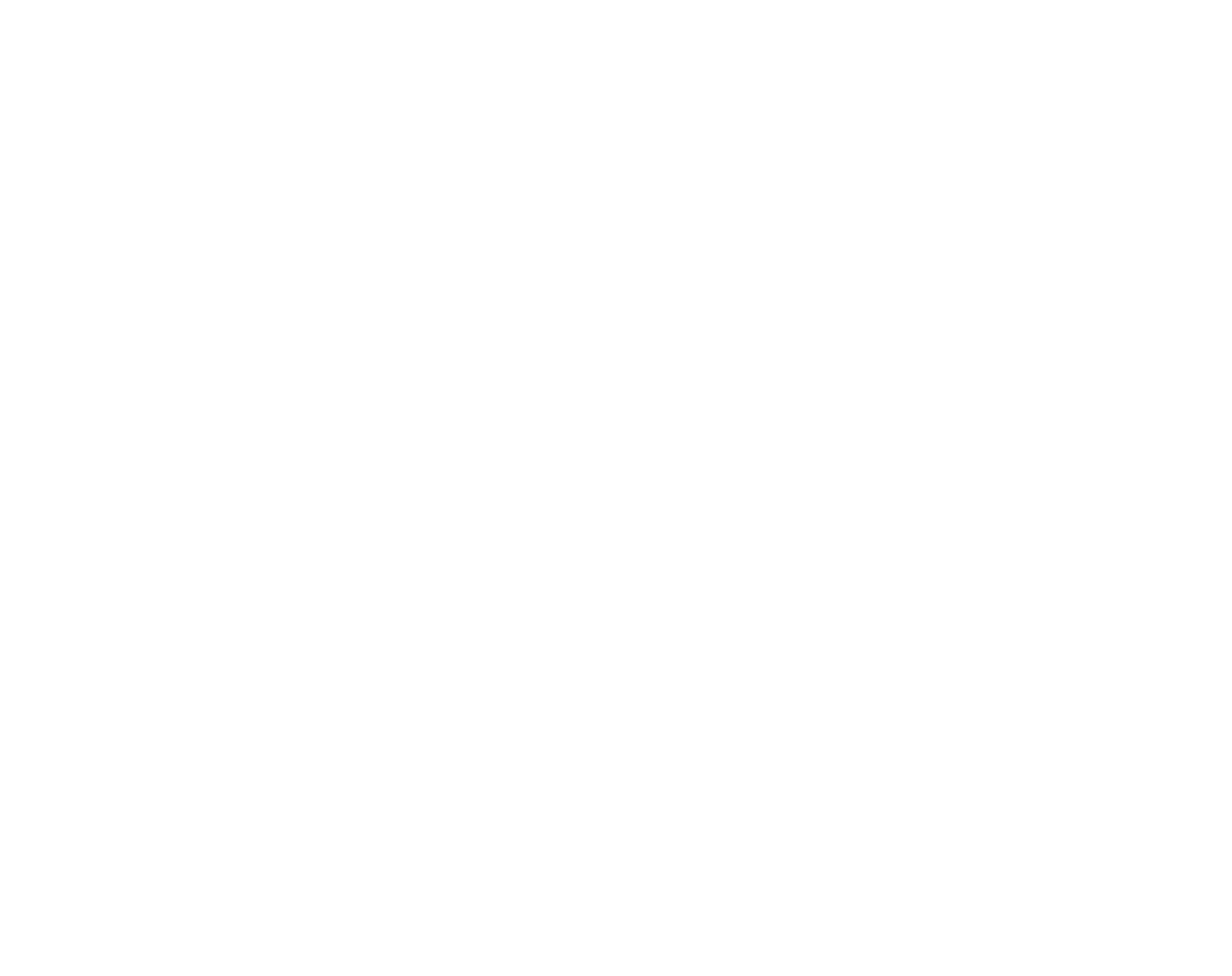

Dimensions: 12.20mm*7.62mm*4.40mm                                                     Packaging: DIP8
