W6301S

Description

This product is a single-channel voltage output linear optocoupler composed of an infrared light-emitting diode, a triode, two photosensitive transistors and two operational amplifier chips, packaged in SOP14 ceramic tube shell. The transfer coefficient is 1, and the operating temperature is -55℃～+100℃, meeting the application requirements of high reliability and environmental adaptability.

Application                                                                                               Features

Power supply feedback voltage and current                                                             Nonlinearity: ≤0.5%
Sensor signal isolation                                                                                                        Transfer coefficient: 1.0±0.05
Audio signal bonding                                                                                                           Isolation voltage: 1000V
Isolated process control sensor                                                                                      Static level: 1000V
Motor drive circuit

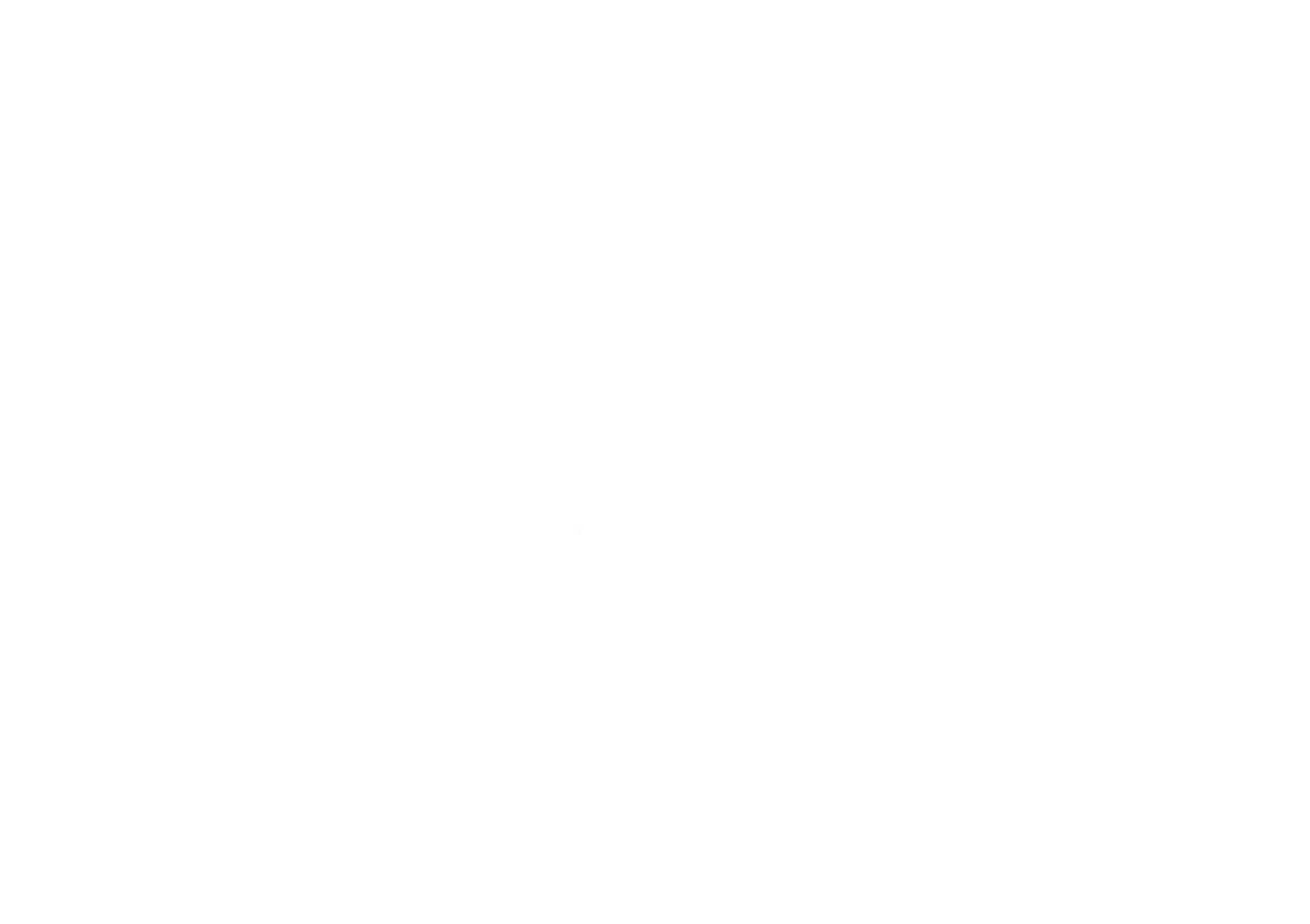

Dimensions: 19.80mm*7.70mm*5.00mm                                                           Packaging: SOP14

Product Information Download 
