W8101L-4

Description

This product is four sets of two-way normal open MOS solid relays consisting of four infrared light-emitting diodes, four photovoltaic chips, and eight MOS tubes, and is packaged in SMD16 ceramic tube shell. The maximum output voltage is 90V, the rated output current is 2A, and the operating temperature is -55℃～+105℃, meeting the application requirements of high reliability and environmental adaptability.

Application

Signal isolation
         Switching circuit
         Motor drive circuit
         Ignition control circuit
         Replace pulse transformer

Features

Bidirectional configuration
         Output stage normally open type
         Maximum output voltage: 90V
         Maximum output on-resistance: 0.15Ω
         Rated output current: 2A
         Operating temperature: -55℃~+105℃

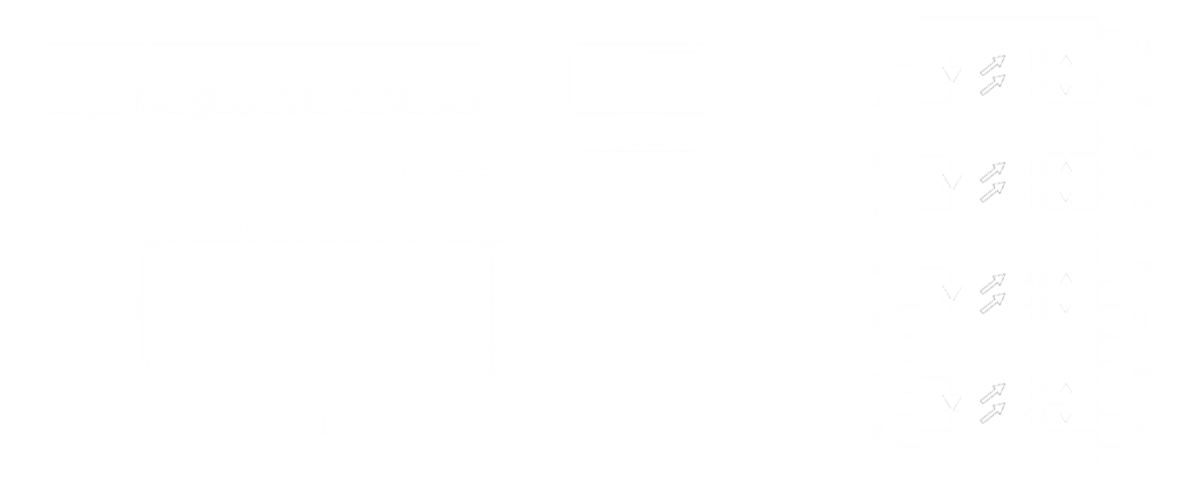

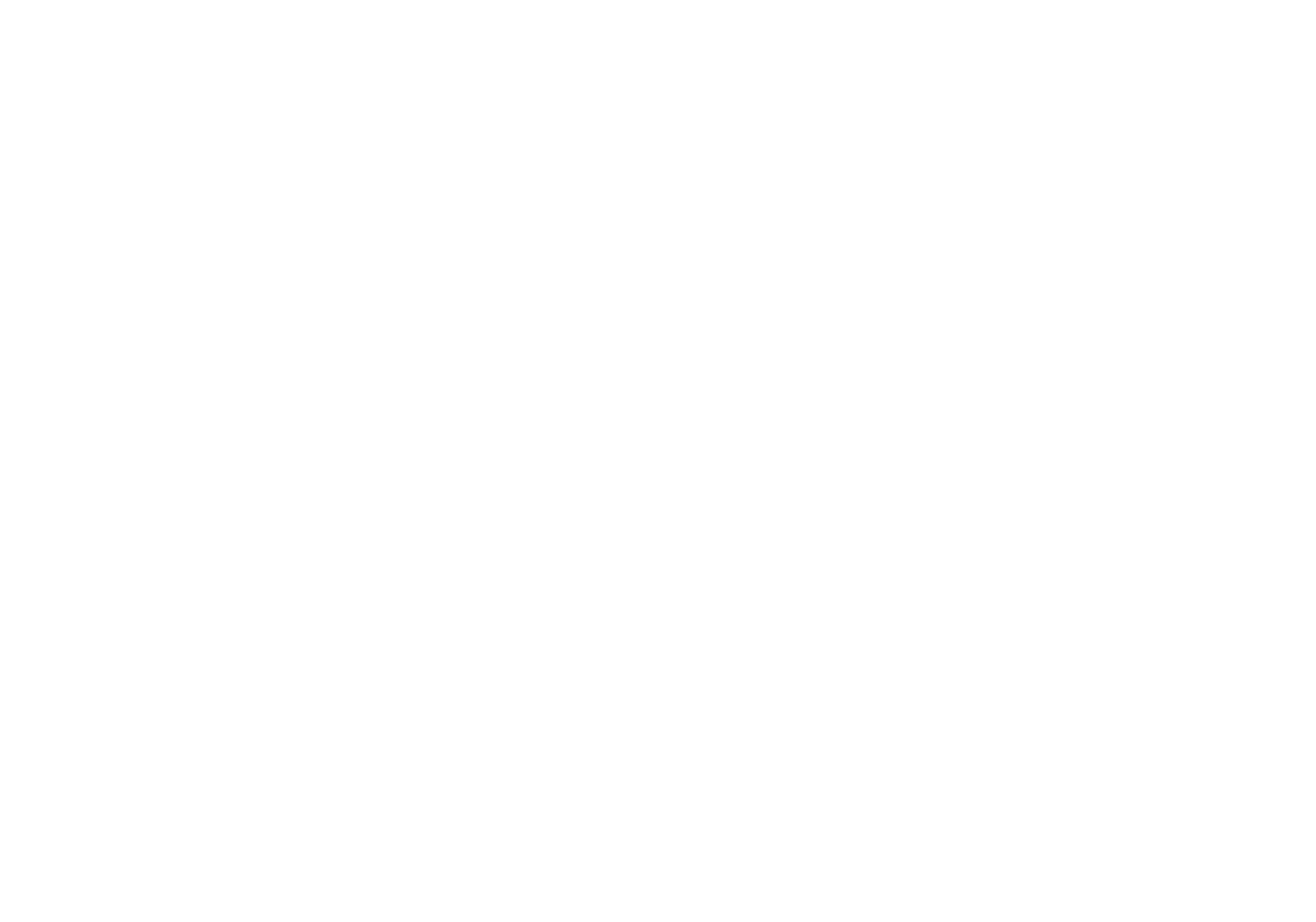

Dimensions：20mm*7.4mm*3.6mm

Packaging:SMD16
