W8109L

Description

This product is one set of one/two-way normal open MOS solid relay consisting of two infrared light-emitting diodes, two photovoltaic chips, and two MOS tubes, packaged in SMD8 ceramic tube shell. The maximum output voltage is 85V, the rated output current is 5A/2.5A, and the operating temperature is -55℃～+105℃, meeting the application requirements of high reliability and environmental adaptability.

Application

Signal isolation
         Switching circuit
         Motor drive circuit
         Ignition control circuit
         Replace pulse transformer

Features

Bidirectional configuration
         Output stage normally open type
         Maximum output voltage: 85V
         Maximum output on-resistance: 0.03Ω/0.12Ω
         Rated output current: 5A/2.5A
         Operating temperature: -55℃~+105℃

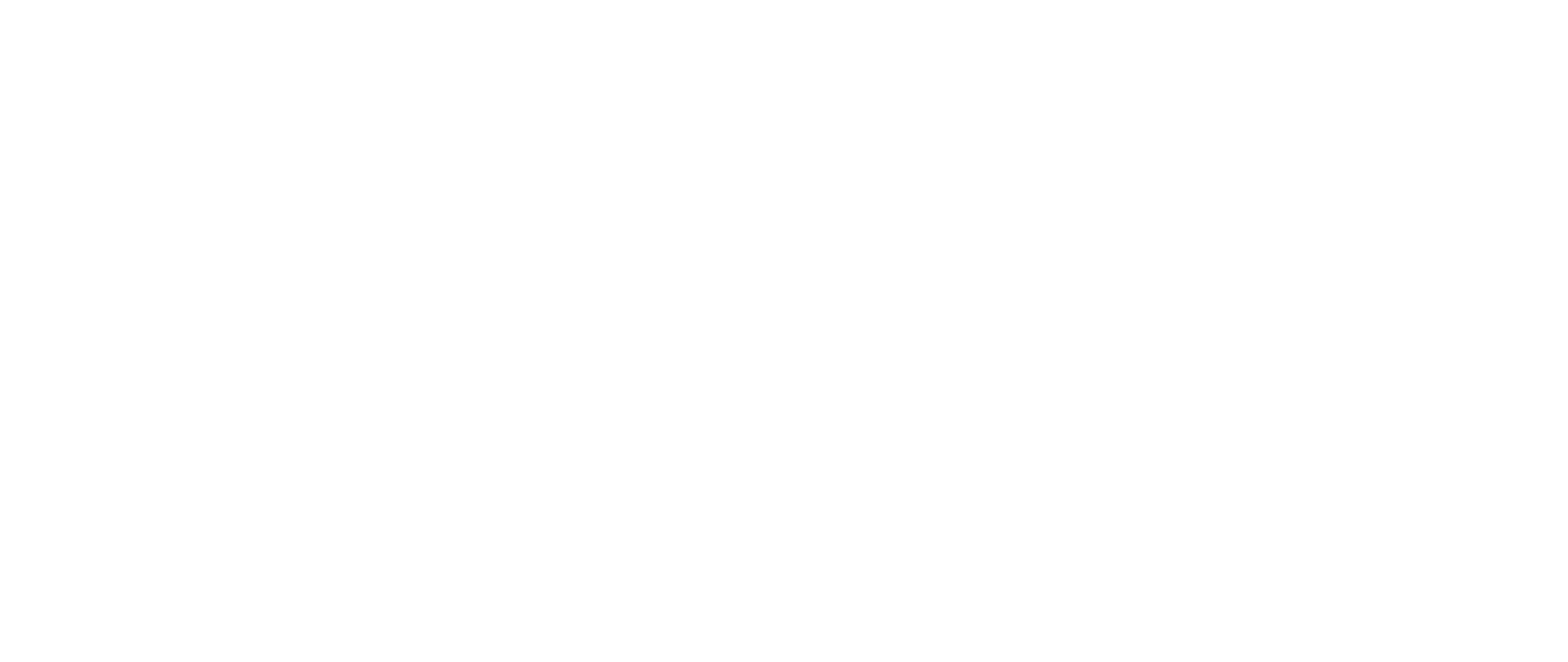

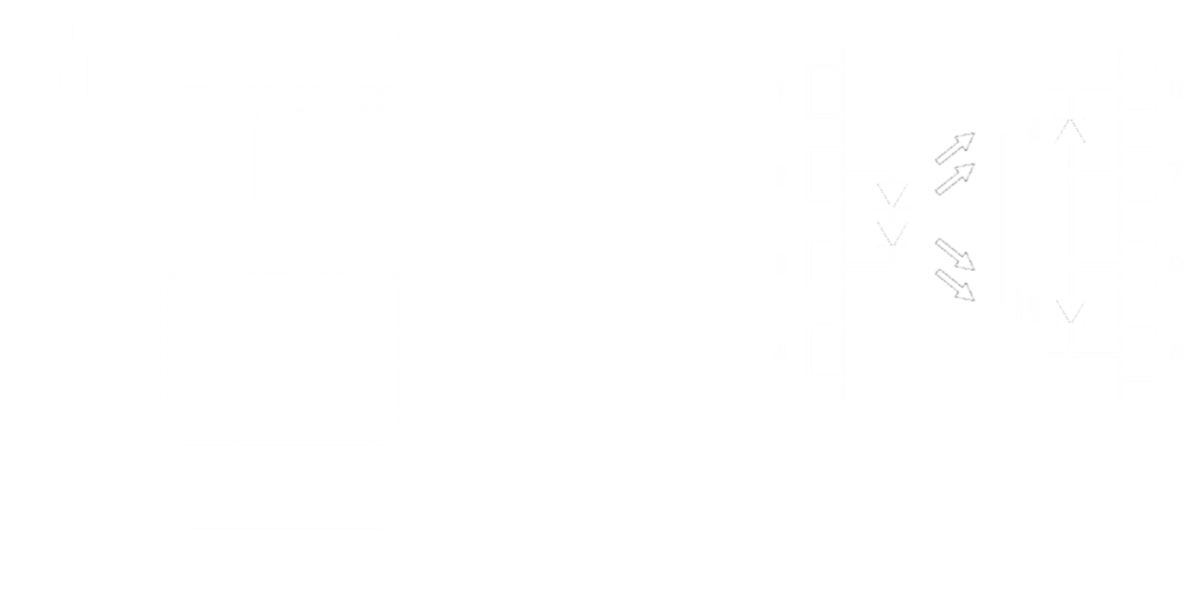

Dimensions:9.70mm*7.40mm*2.90mm

Packaging:SMD8
