W8113D

Description

This product is a normally open MOS solid relay consisting of an infrared light emitting diode, a photovoltaic chip, and two MOS tubes, packaged in DIP6 ceramic tube shell. The maximum output voltage is 50V, the rated output current is 2A/1A, and the operating temperature is -55℃～+105℃, meeting the application requirements of high reliability and environmental adaptability.

Application

Signal isolation
         Switching circuit
         Motor drive circuit
         Ignition control circuit
         Replace pulse transformer

Features

Bidirectional configuration/unidirectional configuration
         Output stage normally open type
         Maximum output voltage: 50V
         Maximum output on-resistance: 0.2/0.3Ω
         Rated output current: 2A/1A
         Operating temperature: -55℃~+105℃

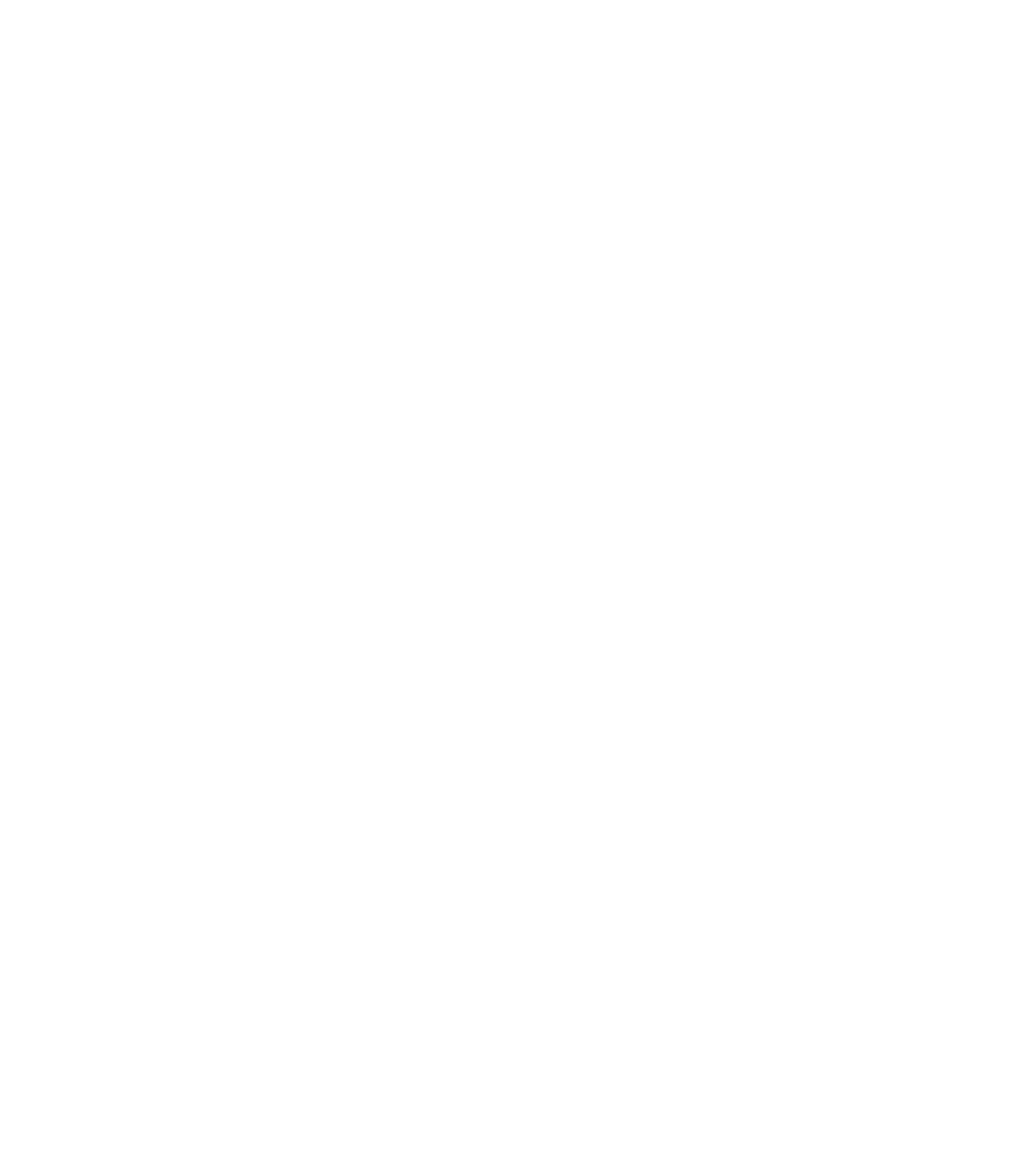

Dimensions:9.70mm*7.62mm*3.60mm

Packaging:DIP6
