W8104D-2

Description

This product is two sets of two-way normal open MOS solid relays consisting of two infrared light-emitting diodes, two photovoltaic chips, and four MOS tubes, packaged in DIP8 ceramic tube shell. The maximum output voltage is 60V, the rated output current is 0.3A, and the operating temperature is -55℃～+105℃, meeting the application requirements of high reliability and environmental adaptability.

Application

Signal isolation
         Switching circuit
         Motor drive circuit
         Ignition control circuit
         Replace pulse transformer

Features

Bidirectional configuration
         Output stage normally open type
         Maximum output voltage: 60V
         Maximum output on-resistance: 1Ω
         Rated output current: 0.3A
         Operating temperature: -55℃~+105℃

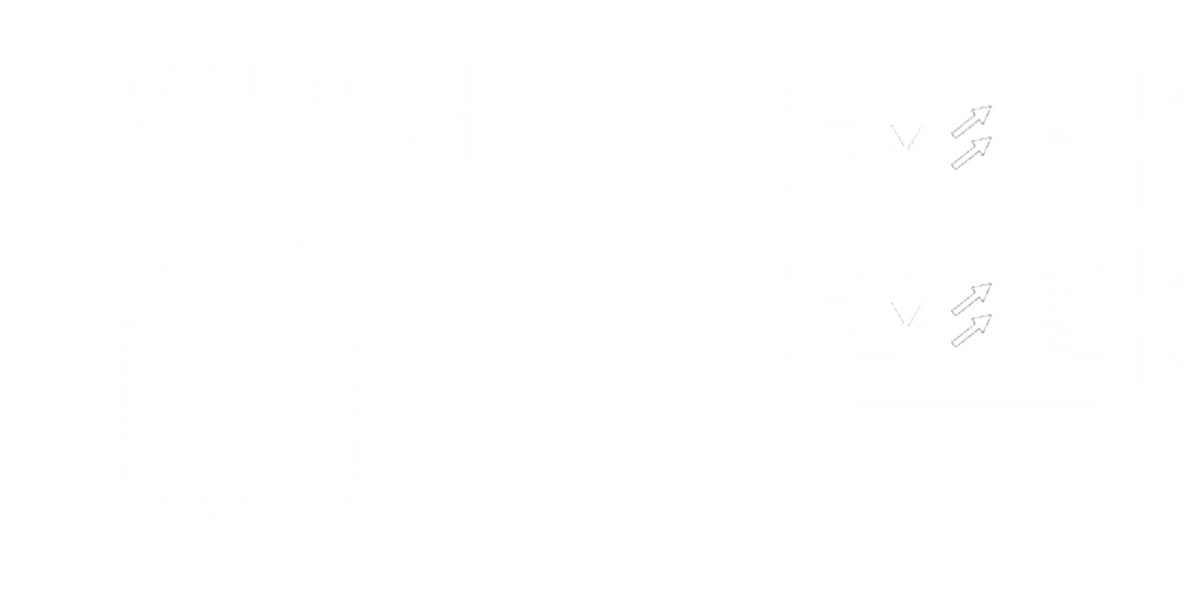

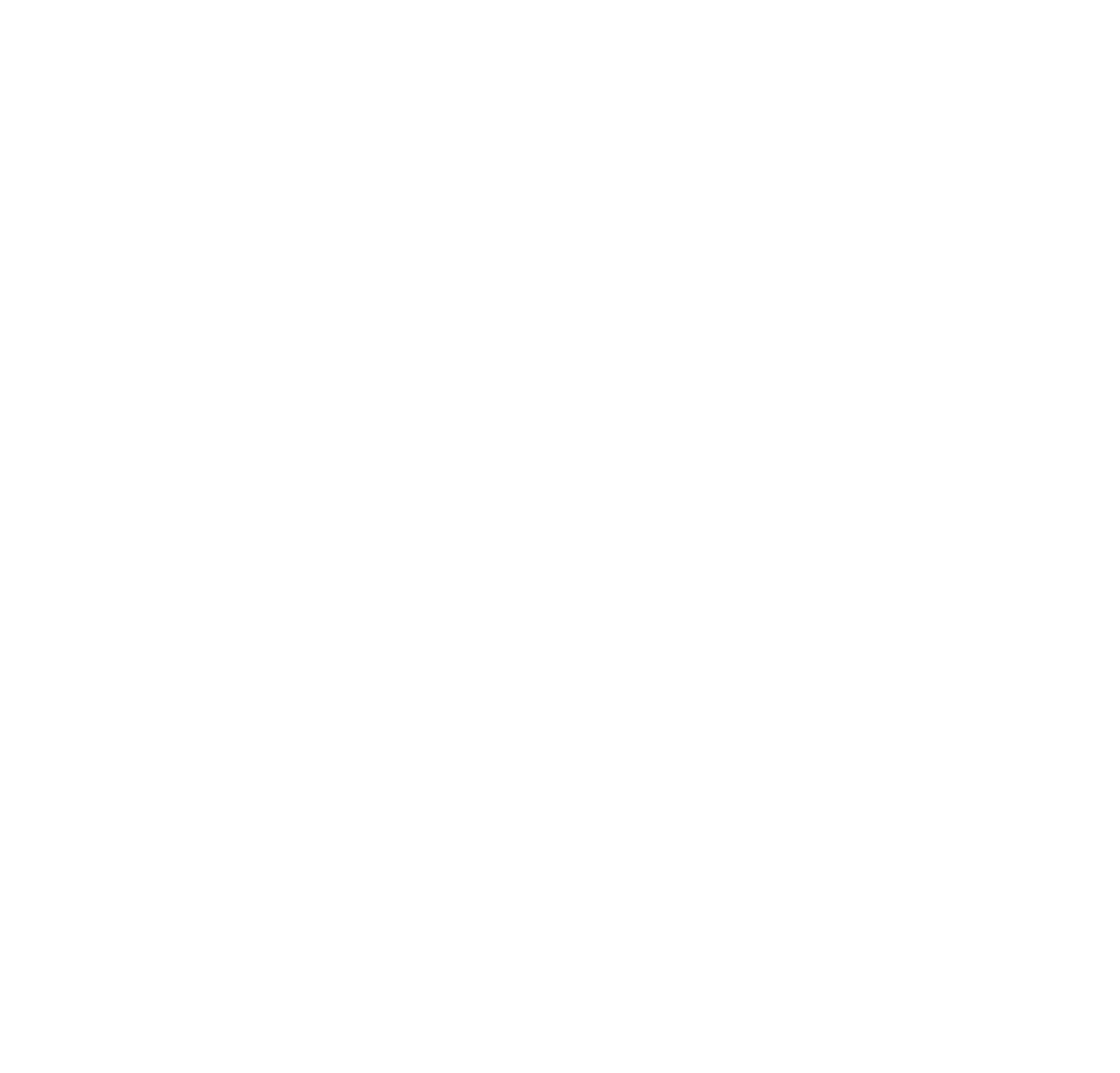

Dimensions:9.70mm*7.62mm*3.40mm

Packaging:DIP8
